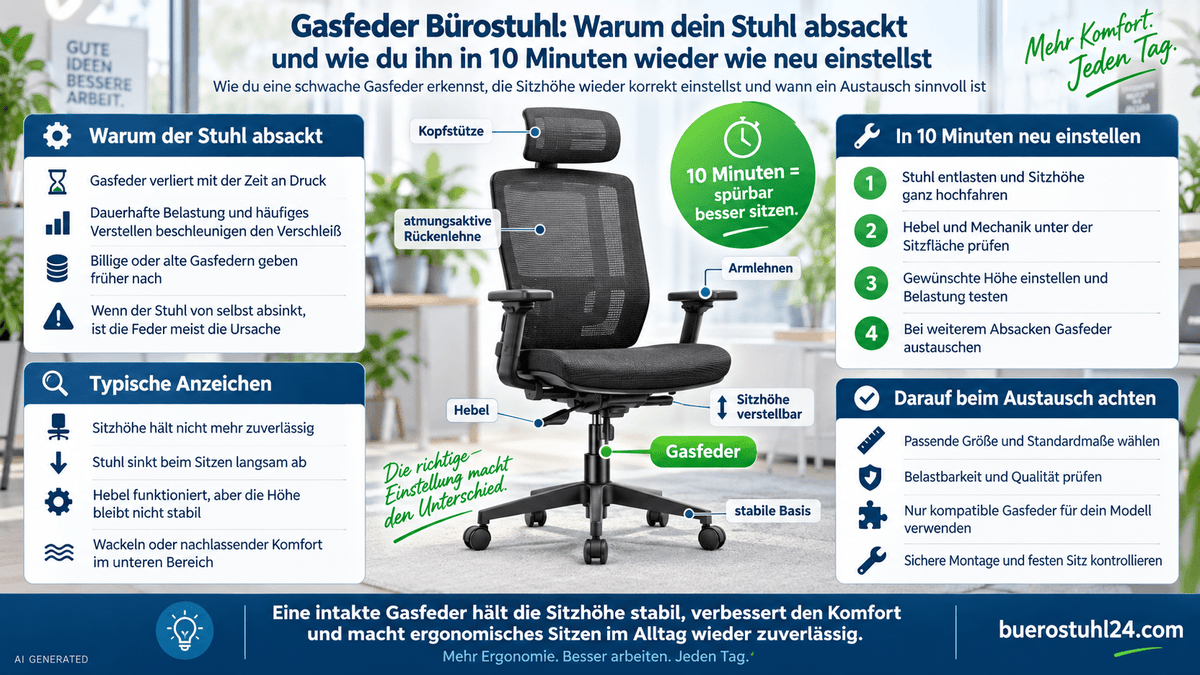

Gas spring office chair: Why your chair sags and how you can set it up like new in 10 minutes

The gas spring (also called gas pressure spring) is the component in the middle of your office chair that continuously adjusts the seat height and provides initial shock absorption when you sit down. If the chair slowly sags while sitting, the cause is almost always a loss of pressure in the cylinder - a clear case for replacement. When purchasing a replacement gas spring, three values count: the Standard cone (usually 50 mm below, 28 mm above), the right one Housing length/lifting height and the Safety class according to DIN 4550 (Class 3 or 4 for continuous use).

A sinking office chair is not a case for bulky waste. In most cases there is a single, replaceable component behind it - and changing it takes just a few minutes if you know what is important.

Office chair sagging? Typical symptoms and causes of a defective gas pressure spring

The symptoms are almost always identical, whether in the executive chair in the office or in the gaming chair in the home office:

• The chair slowly sinks while sitting, even though the height was previously set correctly

• The height adjustment lever can no longer be locked properly – the chair immediately springs back down

• A quiet hissing sound can be heard as it sinks

• The chair can be no longer adjust the height at all (permanently blocked at the bottom or at the top)

The technical reason behind it: Inside the gas spring there is a piston rod in a cylinder filled with nitrogen gas under pressure. A small valve controls whether gas flows between the two chambers - this makes height adjustment possible. After years of daily use the internal seals wear outthat separate the pressure chambers from each other. As a result, gas continuously escapes, the counter pressure drops, and the body weight slowly pushes the piston downwards - the chair "sags".

A second, less common reason is a damaged or bent piston rod, usually due to improper loading (e.g. tipping sideways with a heavy weight).

Why the exchange is almost always worth it: A replacement gas spring costs a fraction of a new office chair. The frame, backrest, upholstery, castors and armrests are usually completely intact - only the one mechanical wearing part in the middle fails. The change rarely takes longer than ten minutes without prior knowledge and does not require any special tools.

Quality & safety classes for gas springs (DIN 4550)

Not every gas spring is suitable for continuous use in the office. The European standard DIN 4550 (Part 3) classifies gas pressure springs according to their tested load capacity and safety - recognizable by GS mark (“Tested Security”). Cheap, non-certified gas springs from direct imports from the Far East often do not carry out this test, which in the worst case can lead to a sudden drop in pressure or even the piston rod firing out.

Rule of thumb for the purchase decision: One is enough for a classic office chair in normal 8-hour operation Class 3 gas spring completely out. Anyone who uses the chair in shifts, as a 24-hour chair in the control room or with an above-average body weight should consistently use it Class 4 - the surcharge is marginal, the safety gain is significant.

Find the right dimensions: measure the shaft, housing and lifting height

Before you order a replacement gas spring, three dimensions determine the accuracy of the fit.

The standard cone: 50 mm below, 28 mm above

Almost all modern office chairs follow a uniform cone standard:

• Below (base): 50mm cone – this connection is virtually an industry standard

• Above (seat mechanism): 28 mm cone – also the usual standard size for most branded mechanics

These dimensions can be measured directly using a caliper on the old, removed gas spring. Deviations mainly occur with very old or very cheap special models - in case of doubt, the following applies: First remove and measure, then order.

Measure housing length & lifting height

The Case length describes the length of the gas spring when retracted Lift height the additional adjustment path upwards. Together they create the complete seat height range:

• Measure the old gas spring from cone to cone in the retracted (shortest) position

• Also note how far it can be extended to the maximum (lifting height, usually 100-120 mm)

• Especially small or very large people Benefit from a longer or shorter gas spring than the standard equipment - a targeted change is worthwhile here, even without a defect, in order to individually adjust the seat height range

Deep suspension: Why cushioning is important when sitting down

High-quality gas springs have an integrated Deep suspension: When you sit down, the first part of the impact is gently absorbed instead of being transmitted undamped to the spine. This effect adds up, especially when you frequently stand up and sit down during the office day - a gas spring without this cushioning leads to an unpleasant "hard" landing noticeably more often.

Step-by-step instructions: Change the gas spring on the office chair yourself

The exchange can be carried out without a workshop and without prior knowledge.

Prepare tool

• Rubber mallet (no metal hammer to avoid damaging plastic parts)

• Pipe flat nose pliers or large water pump pliers as a counterhold

• Penetrating oil / WD-40if the gas spring is stuck or has rust

• Optional: an old blanket or cardboard as a base

1. Turn the chair upside down

Place the office chair upside down on a stable, scratch-resistant surface so that the base points upwards and the gas spring is easily accessible.

2. Remove the base from the old gas spring

The 50 mm cone usually sits very tightly in the base. With light, even blows with the rubber mallet The plug connection comes off laterally against the base (not against the gas spring itself). If the connections are very stuck, a little penetrating oil that can work overnight can help.

3. Release the gas spring from the seat mechanism

As soon as the base is free, the gas spring can usually be pulled out of the 28 mm cone of the seat mechanism by hand or by tapping lightly. For very tight connections, the pipe flat pliers act as a counter-holder.

4. Insert new gas pressure spring

The new, matching gas spring is installed in the reverse order:

• Insert the new gas spring with the 50 mm end vertically into the base and let it click into place with firm, straight pressure

• Attach the seat mechanism with the 28 mm cone from above

• The chair is placed back on the casters – When you sit down for the first time, the connection locks automatically under its own weight, no additional screwing is necessary

After this last step, the chair is immediately ready for use again and can be infinitely adjusted in height.

Conclusion & purchase advisor: Find the right replacement gas spring

A sinking office chair almost never means the end of its lifespan - replacing the gas spring is usually enough. Three criteria count before buying:

• Cone dimensions: Usually 50 mm below / 28 mm above, measure on the old gas spring

• Housing length & lifting height: Determine the appropriate seat height range for your height

• Safety class according to DIN 4550: Class 3 for normal office use, Class 4 for continuous and heavy-duty use with GS mark

In the spare parts range from buerostuhl24.com You will find certified gas pressure springs according to DIN 4550 in chrome and black versions, in various housing lengths and lifting heights - suitable for common standard cones as well as many brand-specific special sizes. This way, your office chair can be restored to its full, safe height adjustment in just a few simple steps, instead of having to hastily give way to a new chair.
